Ropox Quickwash Basin
The Quickwash basin offers a choice of two heights enabling users with varying needs to use the basin. It is manually adjustable, requiring no electrical supply, and easily adjusted between the two positions by a simple lever.
The Quickwash is the perfect solution for where there are multiple users with differing needs, for example in a shared bathroom where wheelchair and ambulant users are using the same basin. It has a compact design making it suitable for smaller bathrooms, and is specially designed to allow full access for wheelchair users.
The Quickwash basin is simple and quick to install, requires no special plumbing arrangements, and can be used to replace a standard basin.
Cost Effective, Simple to Use & Multi User
Quickwash Basin – A height-adjustable wash basin for all users
The QuickWash Basin is a height-adjustable washbasin with the ability to project off the wall. The sink can be lowered 14 cm (5.5”) from its fixed point and move 10 cm (4”) out from the wall. It is an ideal solution for wheelchair users because it gives them the much-needed additional room for the legs.
When the sink is projected out and down, wheelchair users get 63 cm (25”) legroom under the sink, allowing them to get close to the washbasin and reach the tap. The height is adjusted with a release handle which also can be used as a towel holder. It requires very little effort to lower and raise the washbasin. The position lock secures that the basin is securely fastened.
The QuickWash basin does not require electricity, and it comes preassembled, making it easy to install. The cost-effective solution is perfect for small bathrooms, and the clean, simple design making it perfect for private homes.
Lowered Position

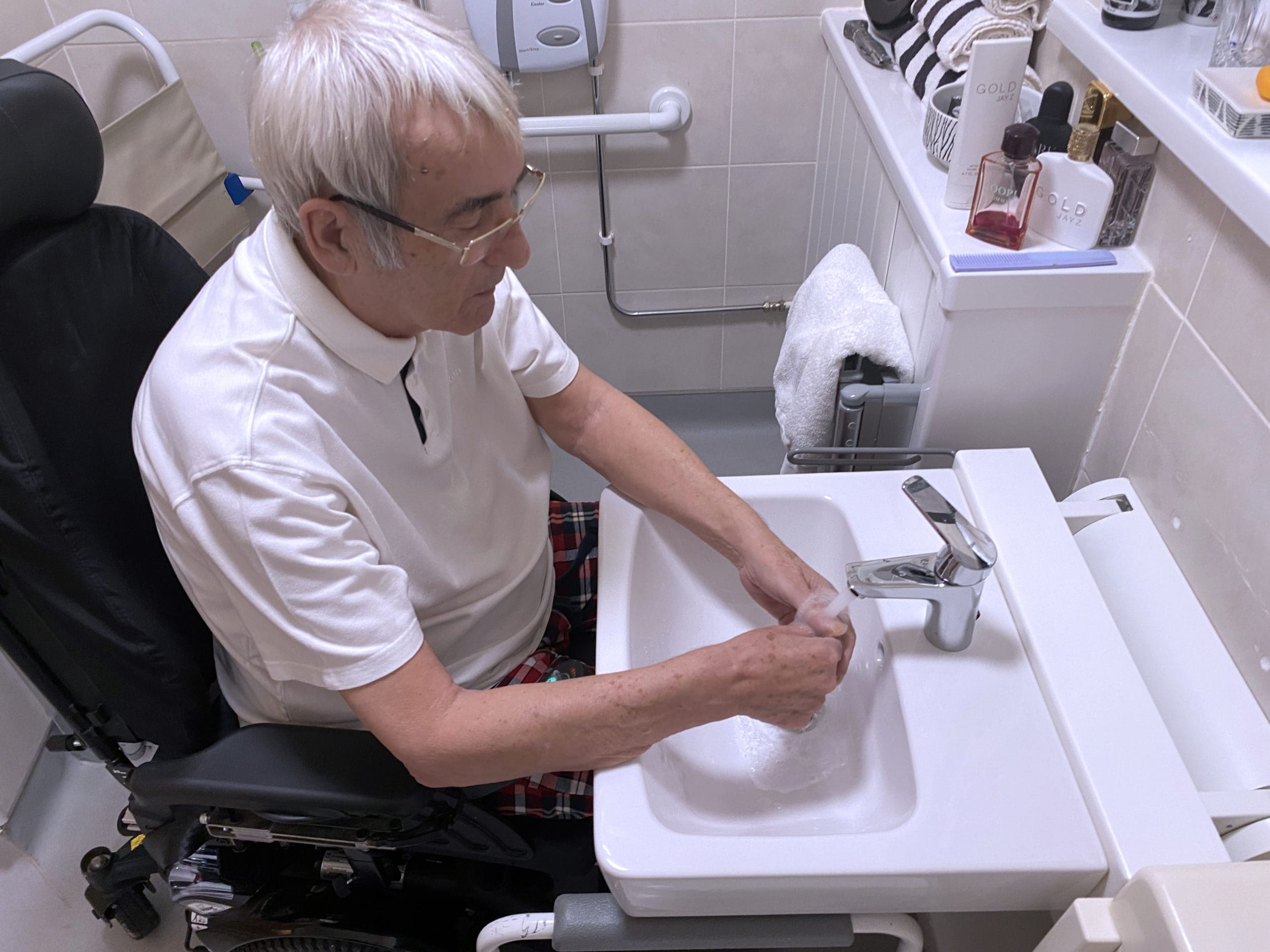

In its lowered position the Quickwash is the perfect height for wheelchair users.

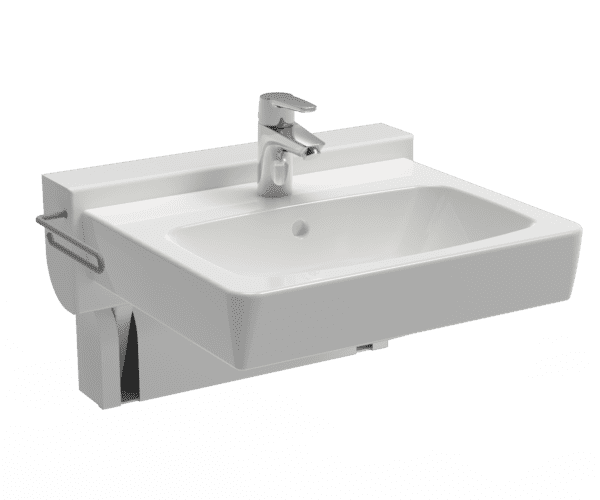

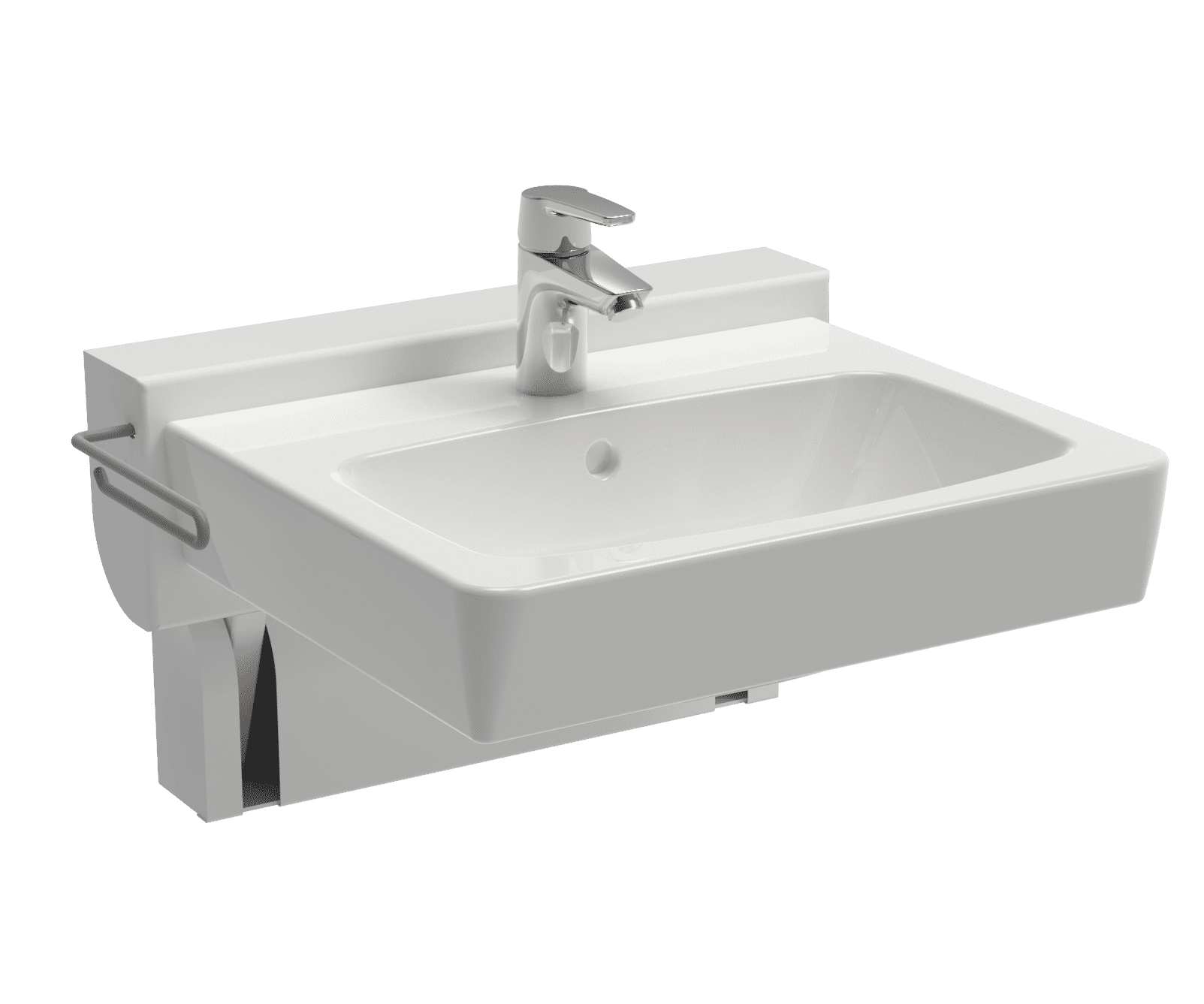

Raised Position
In it’s raised position, the Quickwash can be used by ambulant users.
Compact
The Quickwash bracket is compact and includes a stable shelf for easy access to hygiene items.
FAQs
What type of environments is the QuickWash basin suitable for?
The QuickWash is suitable for accessible WCs, hygiene rooms, shared bathrooms, SEN settings, care homes, healthcare environments, and domestic adaptations where both wheelchair users and ambulant users need to use the same basin.
How does the height adjustment work on the QuickWash basin?
The basin is manually adjustable, using a simple release lever on the side of the unit. It can be lowered 140 mm and projected 100 mm forward from the wall, with no electrical supply required.
What clearance does the basin provide for wheelchair users?
When lowered and projected forward, the QuickWash provides up to 630 mm of knee clearance, allowing wheelchair users to approach closely and reach the tap comfortably.
Is the QuickWash basin safe once adjusted?
Yes. A secure position lock ensures the basin remains firmly in place during use, preventing unintended movement.
What structural support is required for installation?
The QuickWash basin must be fixed to a load-bearing or suitably reinforced wall capable of supporting a maximum user weight of 150 kg. Additional wall reinforcement may be required in stud wall constructions.
Does the QuickWash require special plumbing or electrical services?
No. The basin requires no electrical supply and uses standard plumbing connections, making it suitable for both new-build and retrofit installations.
What is included with the basin?
The QuickWash is supplied pre-assembled and includes a mixer tap, flexible connecting hoses, and flexible waste, reducing installation time.
What are the key dimensional considerations?
Overall width: 574 mm
Basin width: 530 mm
Basin depth: 430 mm
Vertical adjustment: 140 mm
Forward projection: 100 mm
These dimensions should be considered when planning circulation space and adjacent fittings.
Is the QuickWash compliant with accessibility standards?
Yes. The QuickWash is manufactured in accordance with DS/ISO 17966:2016 and is CE certified, making it suitable for accessible bathroom design.
Is the QuickWash basin intended to support a user’s full body weight?
No. While designed to support users leaning against the basin, the QuickWash is not intended to carry full body weight or be used as an exercise or support device.
Can the basin be used in refurbishment projects?
Yes. Its compact size, manual operation, and standard service connections make the QuickWash ideal for retrofit installations where space or power supply is limited.
| Overall Width | 574mm |
|---|---|
| Overall Height | 630mm when raised, 530mm when lowered – Height of Quickwash basin can be determined at point of installation |
| Basin Width | 530mm |
| Basin Depth | 430mm |
| Movement Range | 140mm |
| Warranty | 1 year |
| Services | Installation, commission, maintenance, servicing, training |
