GHZ Lifting Module
The GHZero is a revolution in hoist design providing the most discreet hoist system ever. The patented design conceals the complete hoist mechanism within the track meaning the system is virtually invisible. With a SWL of 255 kg (40 stone), the GHZero is also suitable for larger users.
The standard loop-type spreader bar is available in three sizes for adult and paediatric use. Unique wall mounted rails can be fifitted to almost any substructure, including single skin plasterboard walls, without the need of additional structural support. By integrating the hoist mechanism into the track, lifting height is maximised, making the GHZero superbly suited to installations with low ceilings, such as converted garages.
Spanning up to 5 metres, the GHZero can be used in most environments, with the white powder coated tracks blending in effortlessly; for extra luxury and atmosphere, LED lights can be fitted in the track.
Unique, Invisible, Flexible & Functional
The invisible hoist system

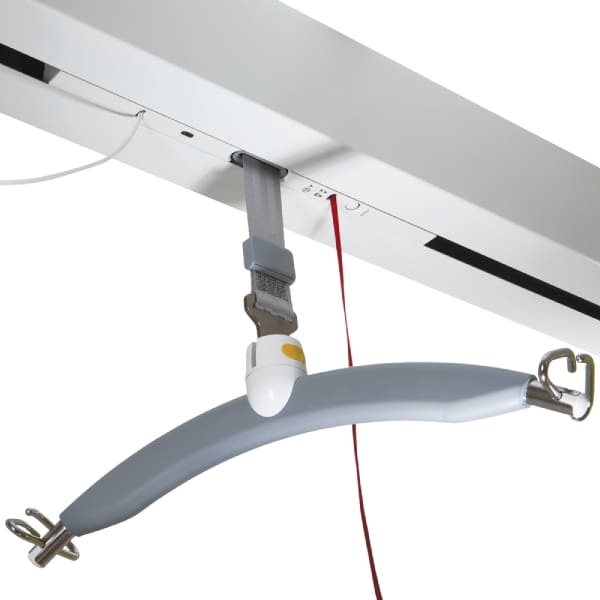

The new GHZ is a discreet and almost invisible ceiling hoist system offering a safe, comfortable and efficient solution for the lifting and transferring of patients. The unique patented design conceals the hoist unit within the track, giving the system a seamless, invisible look.
Increased lifting height – The hoist system is built within its traverse rail, which minimises the built-in dimensions and adds to the lifting height of the hoist the system.
The GHZ provides an extended lifting height which is often a crucial factor in rooms with lower ceilings. This hoist system is perfect for garage conversions, older buildings with low ceiling heights and situations where lift height needs to be maximised. The GHZ’s amazing innovative design gives it an extreme advantage compared to other hoists on the market.
Discreet appearance – The GHZ ceiling hoist can be parked discreetly anywhere on the track, whilst the lifting hanger and sling can be stored out of sight in a built-in cupboard. A ‘through-going’ rail system provides complete coverage of a room. It also provides an effective and direct transfer from room to room e.g. bedroom to bathroom.
Easy to use – All operation elements are clearly defined and intuitive to use. The hoist system is operated by its handset, which clips onto the lifting hanger when not in use. The GHZ ceiling hoist is extremely easy to clean due to its sleek and simple design. Not only is the hoist used for room transfers, it is also used for gait training, balance training and personal care.
Flexible installation – The GHZ ceiling hoist is simple to install and uninstall on both new and existing buildings. When mounting in walls, it will automatically compensate for non-aligned (oblique) walls with up to 80mm.
Discreet and elegant – The simplistic and innovative design of the GHZ allows it to blend into all care environments.
Easy and efficient – Extremely easy to install and re-install directly onto all kinds of wall material.
Simple and flexible – The GHZ enables users complete coverage and an effective, smooth transfer from room to room.
Improved lifting height – Compared with other ceiling hoists, the GHZ offers valuable lifting height.
Call Multicare today on 0800 298 6000 to discuss how the GHZ can improve safety in your property and moving and handling procedures.
Almost Invisible
With no visible motor, the GHZero maximises lift height, and is also perfect for installations where minimum visual impact is a necessity.
Designers Dream
Multiple options for discrete integration. The spreader bar can be concealed in a cupboard, whilst the wall rails can integrate lights and accessories.
Easy to Use
Mounted on low-friction rollers, the GHZero is effortless to move and has simple, intuitive hand controls for ease of use.
Reliability
Based on proven hoist technology, the GHZero benefits from outstanding reliability, with an expected 15-year lifespan.
FAQs
What makes the GHZ different from standard ceiling hoists?
The GHZ integrates the entire lifting mechanism inside the rail, creating an almost invisible system with no external motor housing. This allows for a clean architectural finish and increased lifting height compared to conventional hoists.
What Safe Working Load (SWL) does the GHZ offer?
The GHZ has a 255 kg (40 st) SWL, making it suitable for most adult users in care, education, rehabilitation, and home adaptation environments.
Is the GHZ suitable for rooms with low ceilings?
Yes. Because the lifting module sits within the track profile, the GHZ provides additional lifting height, making it ideal for low-ceiling spaces such as garage conversions, older buildings, and areas where ceiling height is restricted.
What track configurations are possible with the GHZ?
The GHZ can be installed on:
- Wall-mounted rails
- Continuous traverse systems
- Room-covering installations
- Room-to-room transfer rails
The concealed motor design allows discreet parking anywhere along the track.
Can the GHZ ceiling hoist be installed on non-structural walls?
Yes. The GHZ wall-rail system can be fitted to almost any wall type, including single-skin plasterboard, due to its unique mounting design. It automatically compensates for wall irregularities up to 80 mm.
How does the GHZ ceiling hoist charge?
The GHZ charges via a wall-mounted docking station using the handset. A fully charged unit typically performs more than 55 lifts (based on an 85 kg load).
Is the GHZ ceiling hoist suitable for room-to-room transfers?
Yes. A continuous traverse rail system allows direct transfers between rooms (e.g., bedroom to bathroom). The rail can be parked discreetly when not in use.
Does the GHZ hoist provide full-room coverage?
Yes. The system can be configured to provide full coverage within a room, similar to an H-frame layout, while maintaining a low visual impact.
What environments is the GHZ patient hoist best suited for?
The GHZ is ideal for:
- Home adaptations
- Residential care
- SEN environments
- Rehabilitation rooms
- Converted or low-ceiling spaces
- High-end environments where aesthetics matter
Is the GHZ ceiling hoist compliant with LOLER?
Yes. Like all patient lifting equipment, the GHZ requires LOLER inspections every six months and must be serviced by a competent engineer.
Can the GHZ hoist be used for rehabilitation activities?
Yes. The GHZ rail and lifting system can support gait training, balance exercises, and mobilisation, as well as routine transfers and personal care tasks.
| SWL | 255kg |
|---|---|
| Weight of Unit | 8kg |
| Voltage | 24v |
| Width | 155mm |
| Depth | 172mm |
| Track Length | < 5 metres |
| Tape Length | 2500mm (98”) |
| Lift Speed | 40mm |
| Decent Speed | 40mm/second |
| Services | Installation, commission, maintenance, servicing, LOLER, training |
| Free | Site survey |
